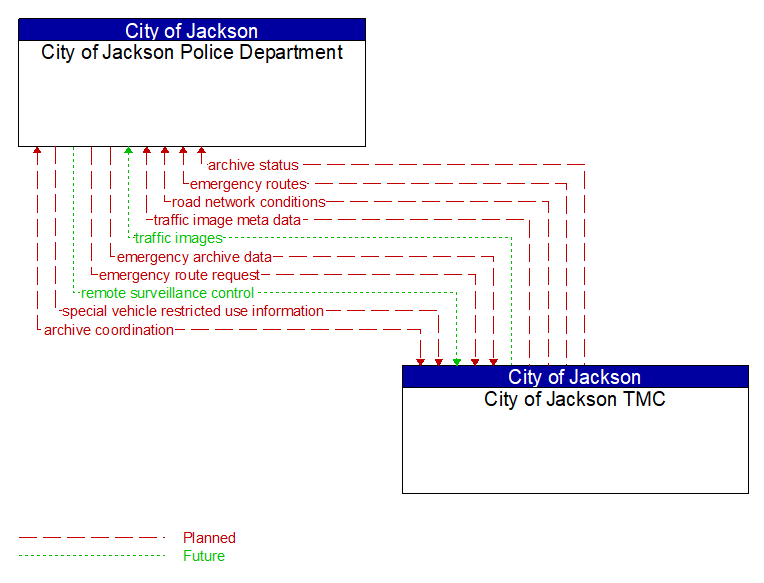

Interface: City of Jackson Police Department - City of Jackson TMC
Information Flow Definitions
archive coordination (Planned)
Catalog data, meta data, published data, and other information exchanged between archives to support data synchronization and satisfy user data requests.
archive status (Planned)
Notification that data provided to an archive contains erroneous, missing, or suspicious data or verification that the data provided appears valid. If an error has been detected, the offending data and the nature of the potential problem are identified.
emergency archive data (Planned)
Logged emergency information including information that characterizes identified incidents (routine highway incidents through disasters), corresponding incident response information, evacuation information, surveillance data, threat data, and resource information. Content may include a catalog of available information, the actual information to be archived, and associated meta data that describes the archived information.
emergency route request (Planned)
Request for access routes for emergency response vehicles and equipment. This may be a request for ingress or egress routes or other emergency routes. It may also include a request for preemption/priority for the identified vehicle at all signalized intersections along the route.
emergency routes (Planned)
Suggested ingress and egress routes for access to and between the scene and staging areas or other specialized emergency access routes.
remote surveillance control (Future)
The control commands used to remotely operate another center's sensors or surveillance equipment so that roadside surveillance assets can be shared by more than one agency.
road network conditions (Planned)
Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included.
special vehicle restricted use information (Planned)
Parameters necessary for implementing unrestricted access to controlled access or toll facilities by special vehicles; e.g., maintenance vehicles, emergency vehicles, etc.
traffic image meta data (Planned)
Meta data that describes traffic images. Traffic images (video) are in another flow.
traffic images (Future)
High fidelity, real–time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images. Meta data that describes the images is contained in another flow.
