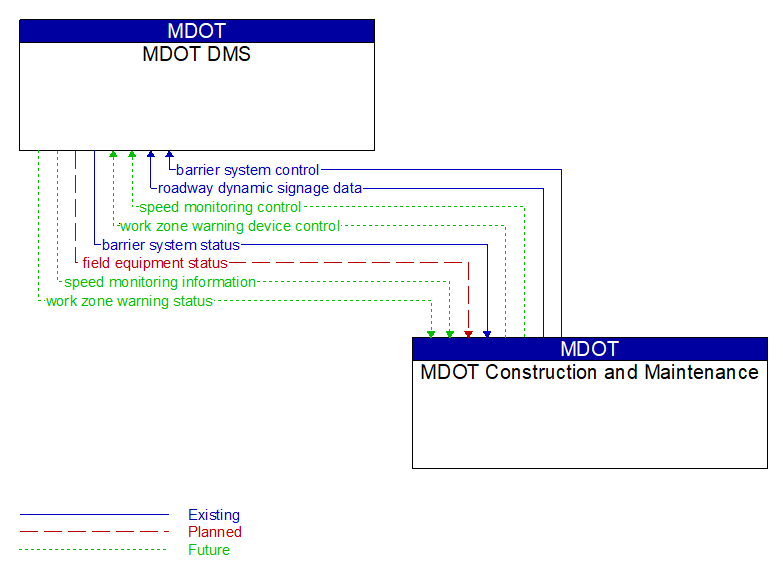

Interface: MDOT DMS - MDOT Construction and Maintenance
Information Flow Definitions
barrier system control (Existing)
Information used to configure and control barrier systems that are represented by gates, barriers and other automated or remotely controlled systems used to manage entry to roadways.
barrier system status (Existing)
Current operating status of barrier systems. Barrier systems represent gates, barriers and other automated or remotely controlled systems used to manage entry to roadways. Status of the systems includes operating condition and current operational state.
field equipment status (Planned)
Reports from field equipment (sensors, signals, signs, controllers, etc.) which indicate current operational status.
roadway dynamic signage data (Existing)
Information used to initialize, configure, and control dynamic message signs. This flow can provide message content and delivery attributes, local message store maintenance requests, control mode commands, status queries, and all other commands and associated parameters that support remote management of these devices.
speed monitoring control (Future)
Information used to configure and control automated speed monitoring, speed warning, and speed enforcement systems.
speed monitoring information (Future)
System status including current operational state and logged information including measured speeds, warning messages displayed, and violation records.
work zone warning device control (Future)
Data used to configure and control work zone safety monitoring and warning devices.
work zone warning status (Future)
Status of a work zone safety monitoring and warning devices. This flow documents system activations and includes additional supporting information (e.g., an image) that allows verification of the alarm.
